Application
- To pump water from reservoirs or collecting tanks;
- To pressurize civil plants;
- Irrigation;
- To feed boilers.
Application features
- Maximum number of starts per hour 20;
- Maximum temperature of the
water pumped 40 ºC;
- Continuous duty S1;
- Degree of protection IP 55;
- Insulation class F.

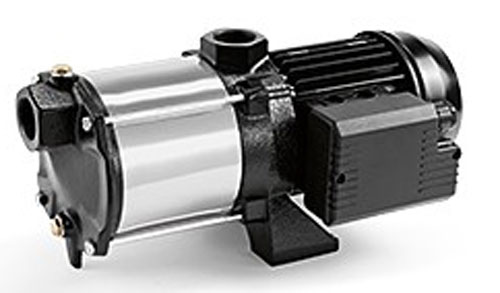

Construction
Asynchronous motor with short circuit rotor;
External ventilation.
Suction body and outlet Mechanical cast iron EN GJL-200
Pump casing, tie rods, bolts and nuts Stainless steel AISI304
Shaft Stainless steel AISI420
Impellers Stainless steel AISI304
Diffusers Polymer reinforced with fibre-glass
Mechanical seal Graphite and ceramics
