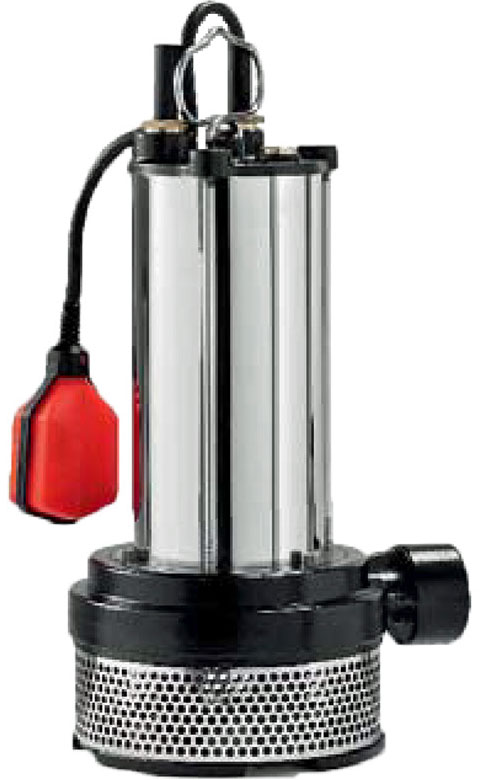

BBC Semisom 130H electtropompe
Application
Electric submersible pumps for installations in domestic, civil and industrial environments.
Suitable to convey waste water also containing suspended solids whose size is up to 5 mm.
They are recommended to transfer water, to drain tanks or flooded areas and to pump grey water coming from domestic, civil and industrial installations.
Application features
- Maximum immersion depth 20 m
- Maximum number of starts per hour 40
- Maximum temperature of the liquid pumped:50 ºC in case of continuous duty S1 series Semisom,
- Degree of protection IP 68;
- Insulation class F.
Construction
- Coolant filled, asynchronous rewindable motor with short circuit rotor;
- Twin seal with oil chamber.
The Part number is different
Part numbers have changed to harmonise along with design changes. The part number stated is the current one in use, there are different numbers for OEM products also, if you have any doubts, please advise the part number and we will confirm.)
What is the lowest head pressure
We do not recommend a lower pressure than 19 meters to keep the pump in hydraulic balance, this relates to 80 L/min flow rate.
Discounts
Further quantity discounts are available for this product range, call the office for details 0161 428 0133
UK Mainland Delivery is normally by 2/3 day courier Free of charge, next working day courier is available for additional cost. If order is placed before 1.30pm. ie despatched on Monday for Wednesday delivery. If placed after 1.30pm then the goods will be despatched Tuesday for Thursday delivery. Next working day cut off time is also 1-30pm. (Highlands and offshore deliveries differ.)
